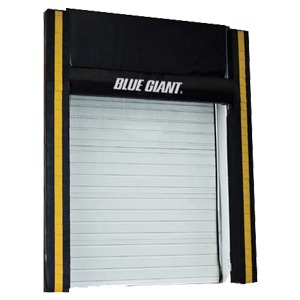

Adjustable Head Pad

Designed to suit door openings from 8′ W x 10′ H (2,438 mm x 3,048 mm) to 9′ W x 10′ H (2,743 mm x 3,048 mm), the Adjustable Head Pad Dock Seal’s design can accommodate a variety of trailer heights.

The foam head pad is raised and lowered on a track roller system while the torsion spring with integral follower curtain makes it easy to create a tight seal. By sealing all gaps that could let in water or dust, the Adjustable Head Pad Dock Seal protects employees and cargo during the cross-docking process.


  • Galvanized spring canopy protects the spring mechanism from the elements, enabling all-weather usage
  • Foam side pads are available in square and beveled pads to enable conformity with typical trailers
  • Double-stitching on all seams
  • 18″ (457 mm) corner pleats
  • Tapered at bottom of pads to eliminate bumper pinch
  • A wide range of durable fabrics is available to suit all application requirements

Recommended Applications

  • Ideal for applications that involve variations in trailer heights

Available Upgrades

  • 48″ (1,219 mm) travel in head pad
  • Pressure-treated lumber

Available Options

  • 48″ (1,219 mm) skid guards
  • Soft foam
  • Full height yellow guide stripe
